Asia It Com Network utilizes state of the art data centres in
Thailand and
USA directly connecting the Thailand One Backbone and to the major
Internet connections
around the world to provide redundancies and best performances to
our clients all over
the world. Facilities include Uninterrupted Power Supply, Backup
Generators,
FM200 Suppression Systems.
With this, customers can be confident that they have selected a
solution that has been
assessed against rigorous industry standards.
Asia It Com Network Co.,Ltd ( Data Center )
A: Thailand ( CAT Telecom )
Leader of high speed internet connectivity
- International bandwidth(IIG) 830 Mbps
- Domestic bandwidth (NIX) 3 Gbps
Guaranteed SLA at 99.9% with fully redundant network.
No Downtime in any service components with SLA (Service Level
Agreement)
at 99.9% to customer.
Not just security system, but you can trust in modern security system.
With defense-in-depth mindset in security; CAT-IDC provides:
- Network Security : Dual-firewall Architecture, first in hardware
zone and second in
- software zone.
- Physical Security : with Close Circuit TV for monitoring people
passing IDC entrance
- with Access Control both of Proximity and Fingerprint as well as
- Fire extinguishing system with VESDA(Very Early Smoke Detector
Apparatus) censor.
With highest potential of power and air cooling systems.
Full efficiency of power and air cooling systems :
- Two sources of public utility electricity to CAT Telecom Tower
both from Sipraya Power
- plant (600 A) and Surawong Power Plant(300 A) as well as inner
power supply backup
- (UPS) and Generator equipment. Air Cooling System :
Average temperature in server storing room for customers are 15-20
celsius degree with
- underground cool air supply and humidity control at 50%

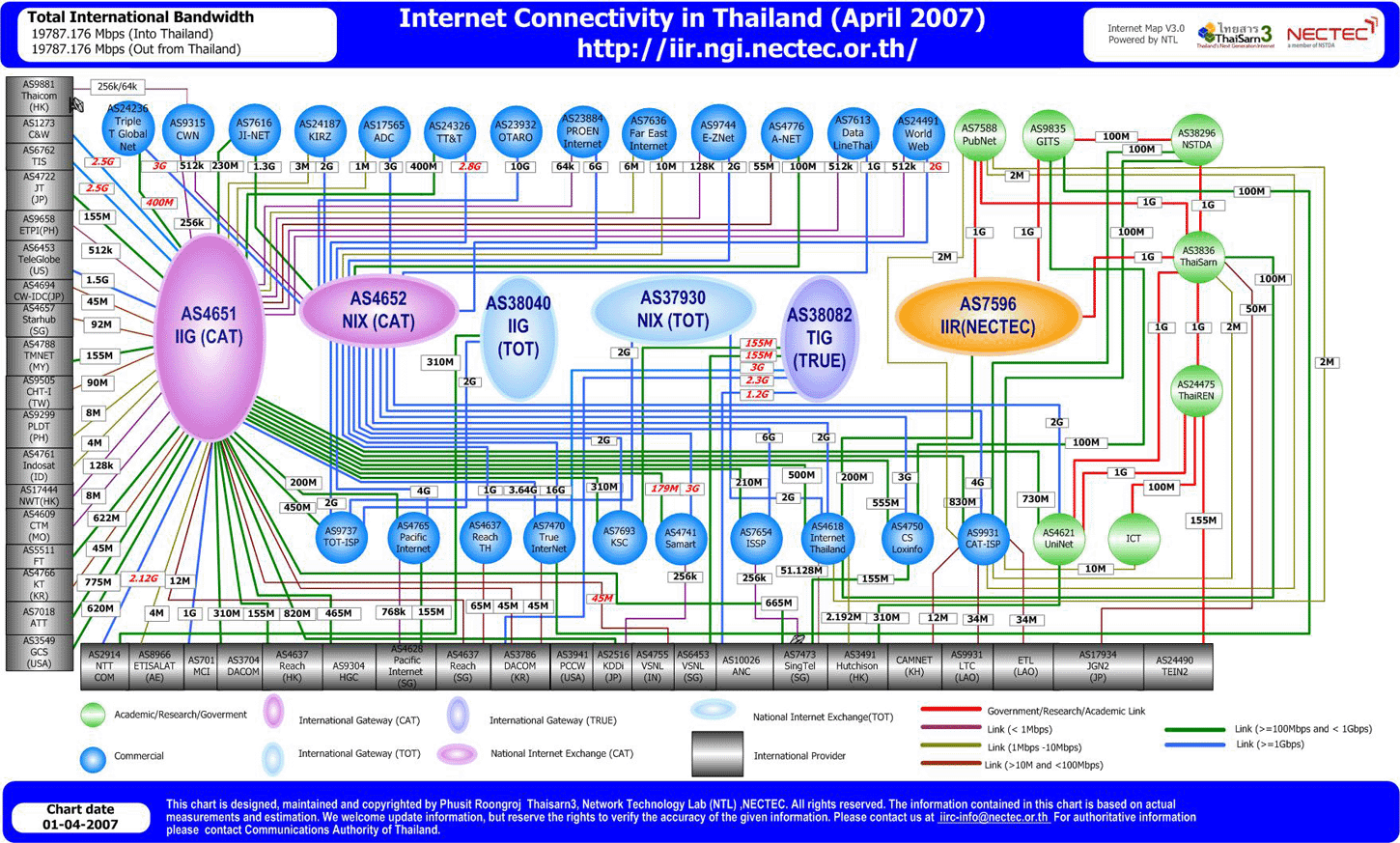

Internet Backbone & Connectivity maps:
Please click on map to view it on new
window :
Internet International Connectivity :
Please click on map to view it on new
window :
B: US ( Telecom Dallas TX )
Tier-1 Premium Bandwidth Providers
Providing the highest quality Internet connectivity and performance is
our top priority. Fitting with this we have exclusively selected
premium Tier-1 bandwidth providers, ensuring minimal latency and
excellent reach ability on a global basis.
We are proud to feature direct connectivity with MCI/UUnet, AT&T, and
Savvis/Cable & Wireless. Our aggregate connectivity reaches an
astounding 4,500+ networks just a single network away from our uplinks.
SBC Diverse Path OC-48 Fiber
SBC Diverse Path OC-48 Fiber
Fiber connectivity to our facility is supplied by an SBC OC-48
diverse path fiber optic sonet
ring. Featuring level 7 path diversity our sonet ring has multiple entry
points into our facility as well as connectivity directly to multiple
carrier offices. There is no shared physical path at any point in the
entire sonet loop.
Cisco GSR 12000 Router
Our network connectivity begins at our border layer which connects
directly to our Tier 1 service providers as well as our network core.
Our reliance on multiple devices each with internally redundant systems
ensures the highest levels of reliability.
Each Cisco GSR is capable of independently routing 60 gigabits of data
at wire rate while isolating any fault risk to each independent line
card. Connections to the core are derived independently enabling yet
another layer of redundancy and performance load balancing
Cisco 6509 Sup720 Core Network
Our fully redundant network core handles bandwidth aggregation and
routing for the entire network. Each Cisco 6509 Sup720 is capable of
routing up to 400 million packets per second with a total capacity of
720 gigabits per second each.
This layer is fully redundant with each unit possessing the ability
to route the entire core in the event of a device hardware or software
failure. Core failure recovery is a nearly instantaneous process and is
fully automated by the self-healing core elements.
Datacenter Power Systems Overview
Our power systems feature extensive fault tolerance and resilience at
every layer. Incoming service is routed underground to a dedicated
on-site transformer. This system routes to our transfer switch junction
which also connects to our power generation facilities.
Our primary UPS is a 300kva Powerware 9315 featuring redundant battery cabinets and a full maintenance bypass allowing for service and upgrades without interruption of power to our servers. Liebert Precision power distribution units handle final power transformation and distribution to racks.
Cisco 3550 Distribution Switches
Final layer3 distribution to rack switches as well as VLAN segmentation
is handled by Cisco Catalyst 3550 distribution switches. Each switch is
capable of handling simultaneous wire rate data traffic for every port
configured ensuring optimal performance and eliminating blocking
potential to the core or individual rack switch.
At the rack layer we utilize Hewlett-Packard Procurve switches to
follow and further enforce VLAN segmentation protocols from the
distribution layer as well as offer final customer network access.
We are a fully managed facility, as such technical staff includes level
3 technicians on site 24 hours per day, allowing incident response
times to be kept to a minimum and system integrity retained with utmost
urgency.
